Machine: Features, Advantages and Benefits
Shanghai Raylaser's laser cutting machine systems will boost your
output and ensure high quality and increased productivity.
The laser cutting machine features high precision, high speed,
narrow gap, small heated zone, high flexibility, low maintenance cost,etc.
Mainly Applications: hand railing, bikes, windows, metal
fabrication, electronics manufacturing, the automotive industry,
and aerospace.
1) Configuration and Specification
Machine Configuration
| No | Key parts | Brands |
| 1 | System | Bochu Cypcut |
| 2 | Laser source | Raycus, Max, IPG |
| 3 | Laser cutting head | Raytools Boci Ospri WSX |
| 4 | Chiller | Hanli/S&A |
| 5 | Servo Motor (1300w+850w+400w) | Yaskawa Inovance |
| 6 | Reducer | MOTOVARIO |
| 7 | Rack and Pinion | LEADER/YYC |
| 8 | Rail guideway | HIWIN |
| 9 | Standard electrical parts | Schneider/Shanghai Electric |
| 10 | Electrical proportional valve | O2(<10bar) |
Technical Specification
| No. | Key Performance | Specification |
| 1 | Working area | 6000mm (L) ×230mm (Dia.) |
| 2 | X axis length | 400mm |
| 3 | Y axes length | 6010mm |
| 4 | Z axis length | 300mm |
| 5 | Positioning accuracy | ≤0.03mm |
| 6 | Repeat positioning accuracy | ≤0.02mm |
| 7 | Max.accumulated speed | 100m/min |
| 8 | Max.Acceleration | 1.2G |
| 9 | Load Bearing Capacity | 1500KG |
| 10 | Overall weight | 2500Kg |
| 11 | Machine overall dimensions | L12800mm*W1500mm*H1860mm |
| 12 | Power supply | AC380V/50Hz/≤50KVA |
| 13 | Rating | IP54 |

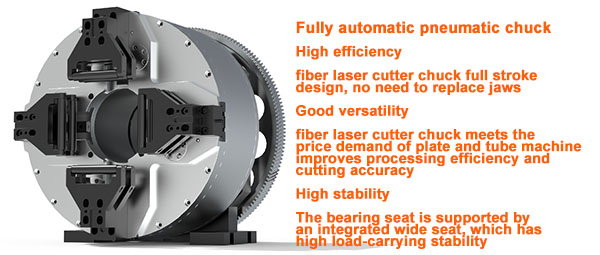

2) The Crucial Details
The design of a machine is pivotal to its performance
And We build pride by our craftsmanship.
3) High Standard Quality Process
The manufacturing processes of Laser Cutting Machine is the
integration of mechanical, optical, electrical, pneumatic, and
fluidic systems!
With our industrial Standardized Production Processes.
A specialized production line, high quality compoments, and
experienced techincians come together to craft sophisticated,
reliable machinery for our customers.
We committed to deliver quality, reliability and excellent
performance.
