Product Description
Professional Large Format Laser Cutting Machine Products as
following:
1) The whole welded structural frame by annealing and abrasive
blasting, no deformation.
2) Top brand for the mechanical moving system guarantee precision
for the whole life of machine.
3) The selected laser source for your professional demands, 24hours
continous working machine.
4) The ease of use software and auto focus cutting head for
beginner and professional.
5) 17 years of experience for laser cutting application from
Shanghai, you deserve our specialist and advantages.
6) Quick response to your further demand and any concern.
7) Our main philosopy is focus on the customer's advantage of
production!
Overviews
| Model | TG12030 Edge |
| Cutting area | 12000mm 3000mm (Cutting Area accepted customized) |
| Fiber laser power | 10000w/15000w/20000w/30000w/40000w/60000w/ |
| 80000w/120000w |
| Fiber laser generator brand | Raycus / Max / IPG |
| Laser wavelength | 1,070-1,080mm |
| Interface | USB,RJ45 |
| Moving speed | 60m/min |
| Max Cutting speed | 120m/min |
| Position accuracy | ±0.03mm |
| Repeatability accuracy | ±0.02mm |
| Power supply requirement | 3 phase 380v 50HZ / 60HZ (customized) |
| Max acceleration | 1.0G |
| Table load bearing | 11500KG |
| Compatible software | CorelDraw / AutoCAD / Photoshop / AI |
| Brand of motor and drivers | Japan Fuji; Japan Yaskawa; Taiwan Delta |
| Support graphic format | LXD / DXF / PLT / AI / Gerber / DWG |
| Transmit system | Dual Rack & Pinion type |
| Control system and software | CypCut FSCUT8000E |
| Cutting head | Raytools / Ospri / Precitec |
| Reducer | Japan Shimpo / France Motovario |
| Liner guider system | Taiwan Hiwin / Italy PEK |
| Gear rack | Taiwan YYC / Germany HERION |
| Electrical components | France Schneider |
| Water chiller | S&A / Hanli |
| Optional | Exchanging Table ; Protective Cover |
| Processing material | Metal |
| Gross weight | 13500KG |
| Packing size | 14550*4250*1550mm |
| Packing method | 40GP |

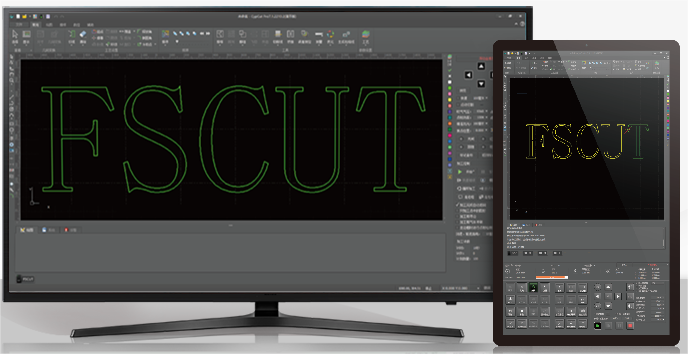

The Most advanced and ease of use system to give you no waste
material.
The Larger Industrial Touch HMI Screen are Friendly and most
enjoyable.

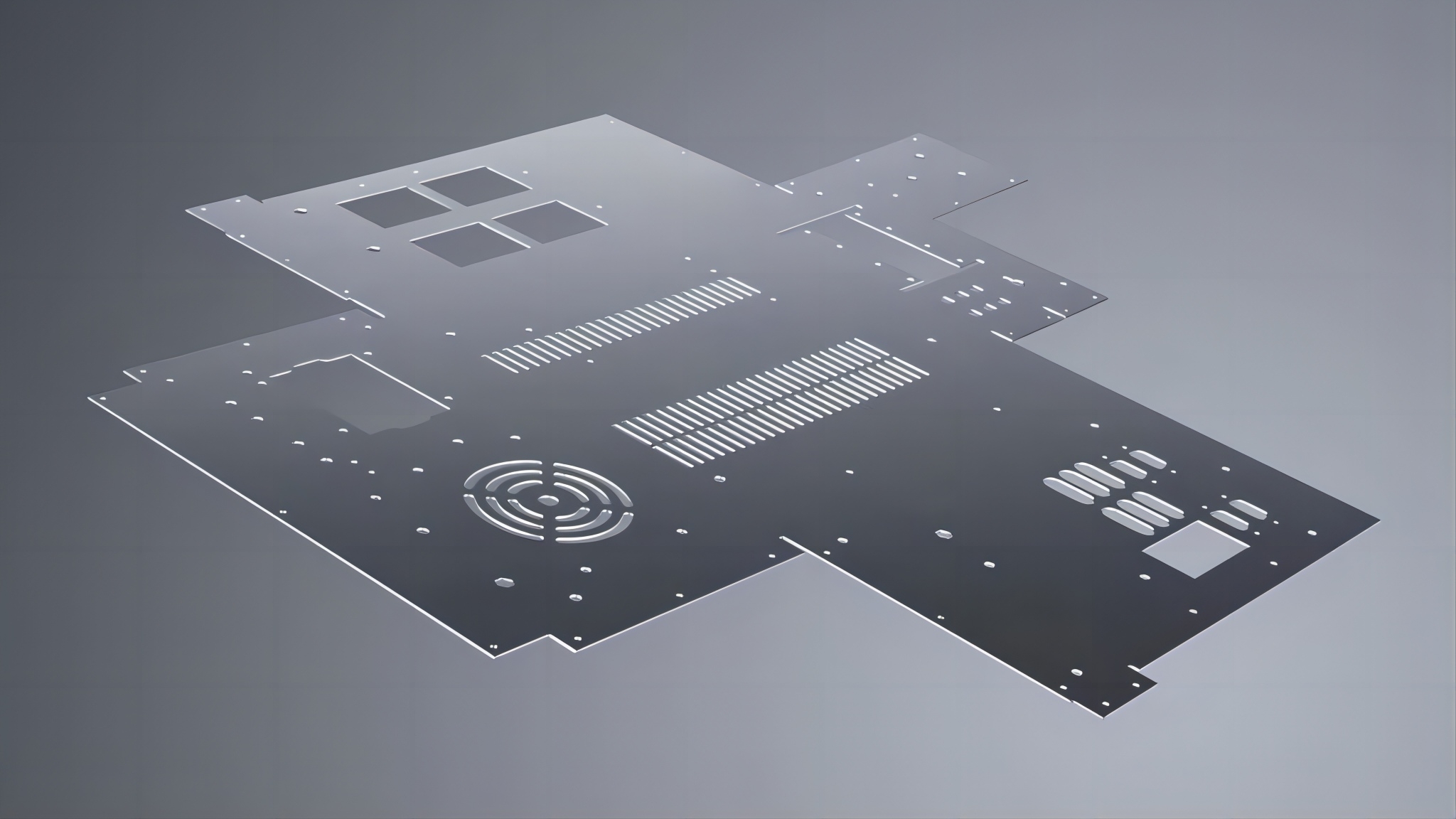

Samples
Our Services
1) Professional pre-sale consulting service, offer the most
advanced solution.we can offer you comprehensive advice so that you
can take advantage of all production possibilities
2) High quality production with detailed process and high standard
inspection.
3) We offer training that is individually adapted to different user
types, as well as their prior knowledge and requirements
4) Offer consumable parts at low prices
5) Upgrade the system or more needed power to increase productivity
at low cost.
6) Our professional technical service team to provide technical
guidance and support fot the whole life of machine.
Q1: I knew nothing about this machine, what kind of machine I
should choose?
It’s easy for you to tell us what’s your application, then let us
give you perfect solutions and suggestions.
Q2: When I get this machine, but have no idea how to use it. What
should I do?
We will send video and English manual with the machine. If you
still have some doubts, we will show you the professional guidance
via video instruction.
Q3: If some problems happen to this machine during warranty period,
what should I do?
We will offer free parts during machine warranty period.
When out of warranty time we also supply after-sales service at
lower cost.
Q4: Before sending us an inquiry, It’s necessary to provide the
following information
1) Working area needed.
2) Your materials.
MS,SS,Aluminum Copper...
3) The main and max. thickness you want to cut?
Because different cutting thickness need different laser power
source.
