Product Description
Professional Products as following:

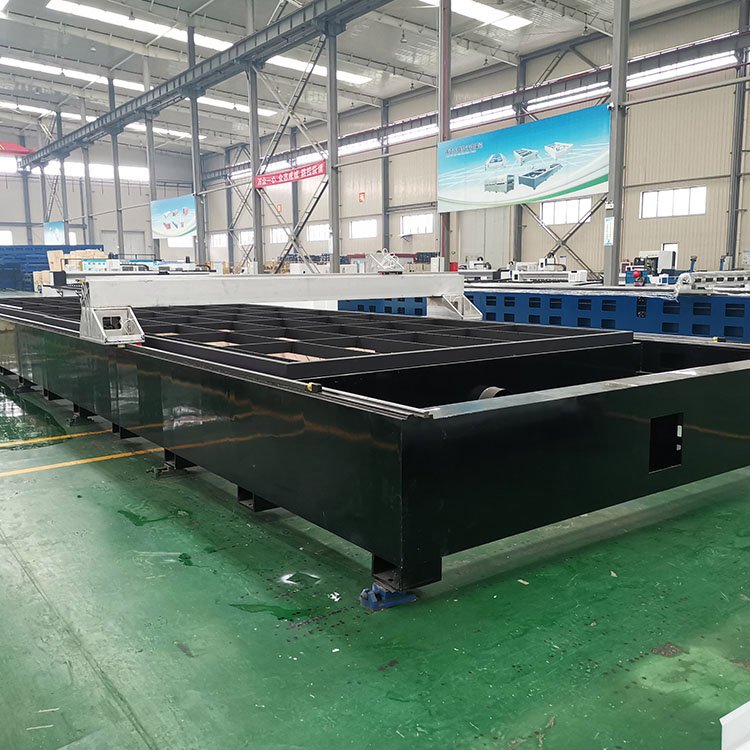

1) The whole welded structural frame by annealing and abrasive
blasting, no deformation.
2) Top brand for the mechanical moving system guarantee precision
for the whole life of machine.
3) The selected laser source for your professional demands, 24hours
continous working machine.
4) The ease of use software and auto focus cutting head for
beginner and professional.
5) 17 years of experience for laser cutting application from
Shanghai, you deserve our specialist and advantages.
6) Quick response to your further demand and any concern.
7) Our main philosopy is focus on the customer's advantage of
production!
Overviews
| Model | TF3015Edge |
| Cutting area | 3000mm 1500mm (Cutting Area accepted customized) |
| Fiber laser power | 1000w/1500w/2000w/3000w/4000w/6000w/ |
| 8000w/12000w/20000w |
| Fiber laser generator brand | Raycus / Max / IPG |
| Laser wavelength | 1,070-1,080mm |
| Interface | USB,RJ45 |
| Moving speed | 60m/min |
| Max Cutting speed | 120m/min |
| Position accuracy | ±0.03mm |
| Repeatability accuracy | ±0.02mm |
| Power supply requirement | 3 phase 380v 50HZ / 60HZ (customized) |
| Max acceleration | 1.0G |
| Table load bearing | 1500KG |
| Compatible software | CorelDraw / AutoCAD / Photoshop / AI |
| Brand of motor and drivers | Japan Fuji; Japan Yaskawa; Taiwan Delta |
| Support graphic format | LXD / DXF / PLT / AI / Gerber / DWG |
| Transmit system | Dual Rack & Pinion type |
| Control system and software | CypCut FSCUT |
| Cutting head | Raytools / Ospri / Precitec |
| Reducer | Japan Shimpo / France Motovario |
| Liner guider system | Taiwan Hiwin / Italy PEK |
| Gear rack | Taiwan YYC / Germany HERION |
| Electrical components | France Schneider |
| Water chiller | S&A / Hanli |
| Optional | Exchanging Table ; Protective Cover |
| Processing material | Metal |
| Gross weight | 3500KG |
| Packing size | 4550*2250*1550mm |
| Packing method | 20GP |
Cutting Parameters
| Material | Thickness
(mm) | Assist
Air | Speed
(m/min) | Power(W) | Presure
(bar) | Header Height
(mm) | Focus
Height | Nozzle Type |
MS
(Q235B) | 1 | N2/Air | 58~62 | 6000 | 12~16 | 0.5 | 0 | Single:2.0 |
| 2 | N2/Air | 31~36 | 6000 | 12~16 | 0.5 | 0~-0.5 | Single:2.0 |
| 3 | N2/Air | 18~22 | 6000 | 12~16 | 0.5 | -1~-1.5 | Single:2.0 |
| 4 | N2/Air | 11~13 | 6000 | 12~16 | 0.5 | -2~-2.5 | Single:2.5 |
| O2 | 3.7~4 | 3000~3500 | 0.6~0.8 | 0.6~0.8 | 4.0~5.5 | Dural:1.2 |
| 5 | N2/Air | 8~10 | 6000 | 12~16 | 0.5 | -2.5~-3 | Single:3.5 |
| O2 | 3.2~3.3 | 4000~4500 | 0.6~0.8 | 0.6~0.8 | 4.0~5.5 | Dural:1.2 |
| 6 | N2/Air | 5.5~6.5 | 6000 | 12~16 | 0.5 | -2.5~-3 | Single:3.5 |
| O2 | 2.6~2.8 | 4000~4500 | 0.6~0.8 | 0.6~0.8 | 4.0~5.5 | Dural:1.2 |
| 8 | O2 | 2.5~2.6 | 4500~5000 | 0.6~0.8 | 0.6~0.8 | 5.5~6.5 | Dural:1.2 |
| 10 | O2 | 2.2~2.3 | 6000 | 0.6~0.8 | 0.6~0.8 | 5.5~6.5 | Dural:1.2 |
| 12 | O2 | 1.8~2.0 | 6000 | 0.6~0.8 | 0.6~0.8 | 6~7 | Dural:1.2 |
| 14 | O2 | 1.4~1.7 | 6000 | 0.6~0.8 | 0.8 | 6~7 | Dural:1.4/1.5 |
| 16 | O2 | 1.2~1.3 | 6000 | 0.6~0.8 | 0.8 | 6~7 | Dural:1.4/1.5 |
| 18 | O2 | 0.7~0.8 | 2200~2600 | 0.6~0.8 | 1.5 | 2.5~3.5 | Dural:3.5/4.0 |
| 20 | O2 | 0.6~0.65 | 2200~2600 | 0.6~0.8 | 1.5 | 2.5~3.5 | Dural:4.0 |
| 22 | O2 | 0.55~0.6 | 2200~2600 | 0.6~0.8 | 1.5 | 2.5~3.5 | Dural:4.0 |
| 25 | O2 | 0.5~0.55 | 2200~2600 | 0.6~0.8 | 1.5 | 2.5~4 | Dural:5.0 |
SS
(SUS304) | 1 | N2/Air | 59~65 | 6000 | 12~16 | 0.5 | 0 | Single:1.5 |
| 2 | N2/Air | 32~38 | 6000 | 12~16 | 0.5 | 0~-0.5 | Single:2.0 |
| 3 | N2/Air | 20~24 | 6000 | 12~16 | 0.5 | -1~-1.5 | Single:2.0 |
| 4 | N2/Air | 12~15 | 6000 | 12~16 | 0.5 | -2~-2.5 | Single:2.5 |
| 5 | N2/Air | 9~11 | 6000 | 12~16 | 0.5 | -2.5~-3 | Single:3.5 |
| 6 | N2/Air | 6~7.5 | 6000 | 12~16 | 0.5 | -3.5~-4 | Single:3.5 |
| 8 | N2/Air | 4~4.5 | 6000 | 16~18 | 0.5 | -5~-6 | Single:3.5 |
| 10 | N2/Air | 2.2~2.4 | 6000 | 16~18 | 0.5 | -6.5~-7 | Single:4.0 |
| 12 | N2/Air | 1.3~1.5 | 6000 | 16~18 | 0.5 | -7.5~-8.5 | Single:4.0 |
| 14 | N2/Air | 0.9~1.0 | 6000 | 16~20 | 0.5 | -9~-10 | Single:5.0 |
| 16 | N2/Air | 0.8~0.85 | 6000 | 16~20 | 0.5 | -10~-11 | Single:5.0 |
| 20 | N2/Air | 0.5~0.6 | 6000 | 16~20 | 0.5 | -11~-13 | Single:5.0 |
The Whole welded frame, abrasive blasting No Deformation.
Top Brand of moving system to guarantee the whole life of
precision.
Auto focus cutting head for your ease of use, more efficiency at
high quality.
The Most advanced and ease of use system to give you no waste
material.
Laser Cutting Machine based on the mechanical Moving Precision,
rely on the active auto lubrication.
The International Standard Electric Cabinet and Most liked
electrical parts for your durable use.
