Machine Configuration
| No | Key parts | Brands |
| 1 | System | Bochu Cypcut |
| 2 | Laser source | Raycus, Max, IPG |
| 3 | Laser cutting head | Raytools Boci Ospri WSX |
| 4 | Chiller | Hanli/S&A |
| 5 | Servo Motor (1300w+850w+400w) | Yaskawa Inovance |
| 6 | Reducer | MOTOVARIO |
| 7 | Rack and Pinion | LEADER/YYC |
| 8 | Rail guideway | HIWIN |
| 9 | Standard electrical parts | Schneider/Shanghai Electric |
| 10 | Electrical proportional valve | O2(<10bar) |
Technical Specification
| No. | Key Performance | Specification |
| 2 | X axis length | 400mm |
| 3 | Y axes length | 6010mm |
| 4 | Z axis length | 300mm |
| 5 | Positioning accuracy | ≤0.03mm |
| 6 | Repeat positioning accuracy | ≤0.02mm |
| 7 | Max.accumulated speed | 100m/min |
| 8 | Max.Acceleration | 1.2G |
| 9 | Load Bearing Capacity | 1500KG |
| 11 | Machine overall dimensions | L12800mm*W1500mm*H1860mm |
| 12 | Power supply | AC380V/50Hz/≤50KVA |
| 13 | Rating | IP54 |
2) The Crucial Details
The design of a machine is pivotal to its performance
And We build pride by our craftsmanship.

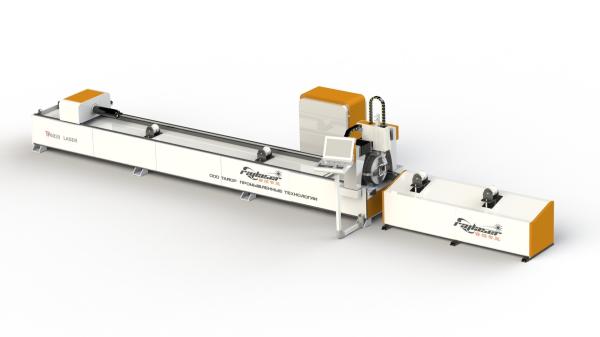

Our Tube Laser Cutting Machine delivers unmatched precision and
performance for industrial metal fabrication. Equipped with
top-tier components like Raycus/IPG laser sources, Yaskawa servo
motors, and HIWIN rail guideways, this machine ensures ≤0.03mm
positioning accuracy and ≤0.02mm repeatability, making it ideal for
high-demand applications in Southeast Asia, Saudi Arabia, and
Europe & America.
Key Features & Advantages
✔ Ultra-Precise Cutting – With ≤0.02mm repeat positioning accuracy,
it guarantees flawless cuts for tubes, pipes, and structural
metals.
✔ High-Speed Performance – 100m/min max speed & 1.2G acceleration
boost productivity without sacrificing precision.
✔ Premium Components – Features Raytools/Ospri cutting heads,
Yaskawa servos, and MOTOVARIO reducers for long-lasting durability.
✔ Heavy-Duty Capacity – Supports 1500KG load-bearing, handling
thick-walled tubes and large metal profiles.
✔ Energy-Efficient Cooling – Hanli/S&A chiller ensures stable
laser performance even in high-temperature environments.
Applications
Automotive & Aerospace – Precision-cut exhaust pipes, frames, and
structural components.
Construction & Architecture – Steel beams, handrails, and
customized metal fittings.
Industrial Machinery – Hydraulic tubes, conveyor systems, and
mechanical parts.
Oil & Gas – High-pressure pipelines and drilling equipment.
Why Choose Our Tube Laser Cutting Machine?
Global Compliance – Compatible with Schneider/Shanghai Electric
standards for worldwide use.
Low Maintenance – Robust HIWIN rails & LEADER rack and pinion
reduce wear and tear.
Smart Control – O2 proportional valve (<10bar) ensures optimal
gas pressure for clean cuts.
Ideal for manufacturers seeking high-speed, high-accuracy tube
cutting, our machine enhances productivity while reducing material
waste. Contact us today for a customized solution!
FAQ:
1. What laser sources does your machine support?
Our machine is compatible with Raycus, Max, and IPG fiber laser
sources, ensuring high cutting precision and energy efficiency.
2. What is the positioning accuracy of this CNC tube laser cutter?
It offers ≤0.03mm positioning accuracy and ≤0.02mm repeatability,
guaranteeing ultra-precise cuts for handrails, windows, and metal
furniture.
3. Which brands are used for key components?
We use top-tier brands like Yaskawa/Inovance servos, HIWIN
guideways, Schneider electrics, and Raytools/Ospri cutting heads
for reliability.
4. What materials and thicknesses can it cut?
It easily cuts stainless steel, aluminum, carbon steel, and copper
pipes, with optimal performance on thin to medium-thickness tubes.
5. What is the maximum workpiece length?
The Y-axis (6010mm) supports long workpieces, ideal for railings,
window frames, and furniture parts.
6. Does it include a chiller system?
Yes, a Hanli/S&A chiller ensures stable laser operation and
extends component lifespan.
